# Mechanical Drawings

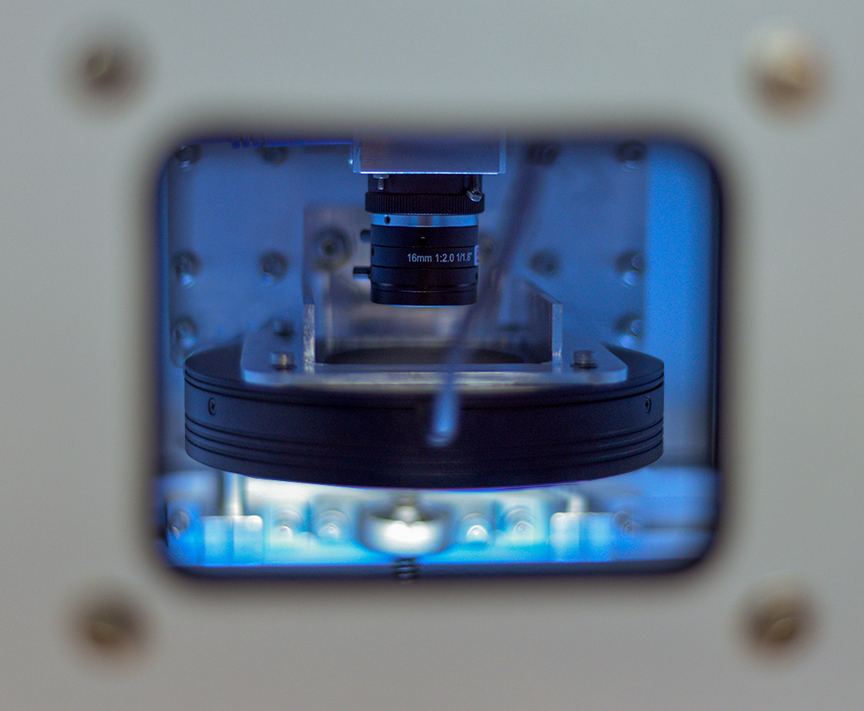

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2FuXe1ziBGI6JMyGkMRz8m%2Fcamera.jpg?alt=media&#x26;token=d273360d-800d-469e-a9ce-e91d50334b58" alt=""><figcaption><p>Detail of the vision system in the Csmart-Digit</p></figcaption></figure>

### Exterior Plan Views

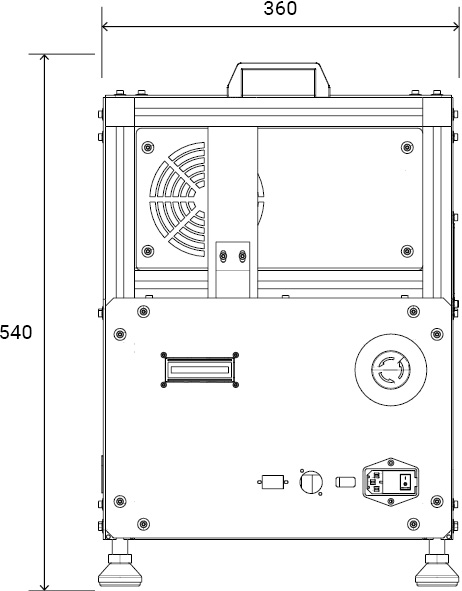

<div data-full-width="false"><figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2F97ZbftdA0dEiWJXW0m77%2FRearPlan.jpg?alt=media&#x26;token=6c6bd583-edac-4199-a6b8-6df76968dfa1" alt="Rear View"><figcaption></figcaption></figure></div>

Rear View

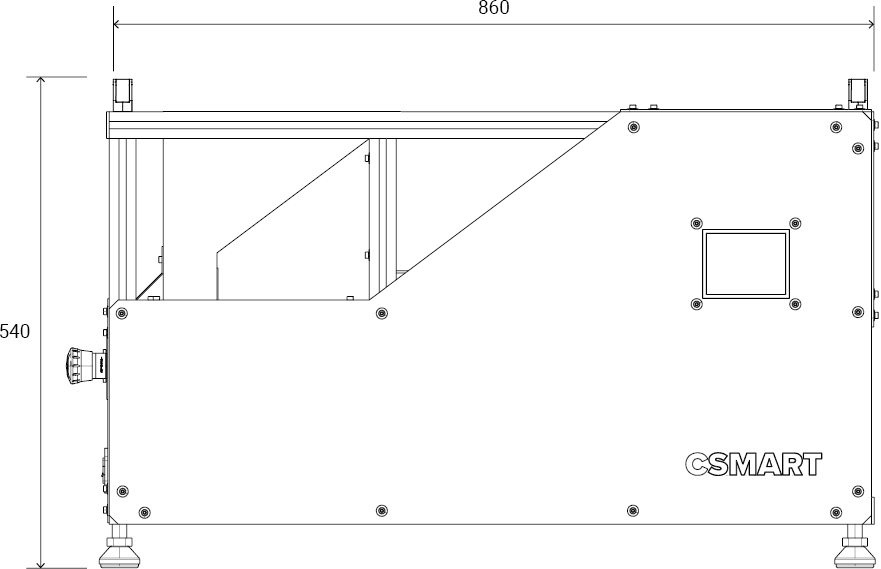

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2FNj0j8xlv341XdmJaGJFo%2FLateralPlan.jpg?alt=media&#x26;token=1d9604ed-9004-407a-b9d8-fc98545efb61" alt=""><figcaption></figcaption></figure>

Lateral View

***

### Exterior Isometric Views

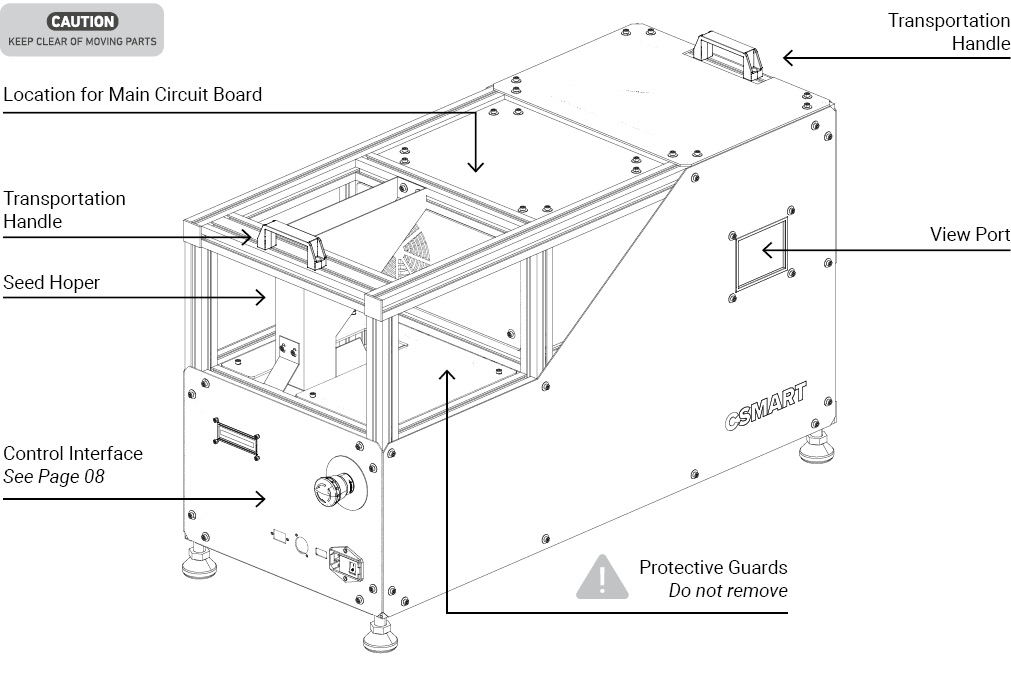

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2FEHCEtDAAUhUdOmVxnpvD%2FRearIsometricView.jpg?alt=media&#x26;token=166ee294-2b4f-485e-a2cd-287718520fa8" alt=""><figcaption></figcaption></figure>

Rear Isometric View

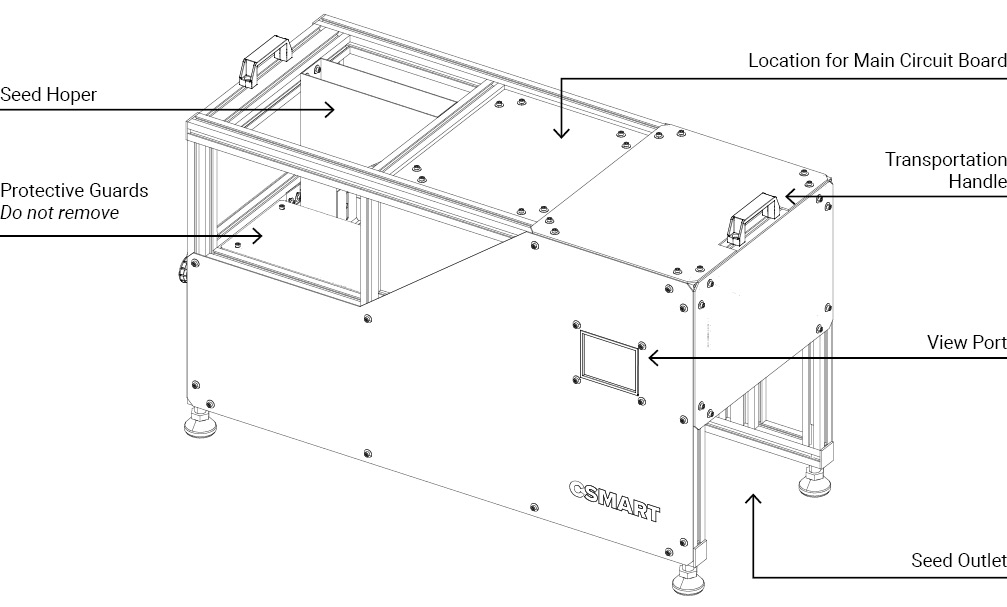

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2FKRTDGfrvSOuNz4JJVZqR%2FFrontIsometricView.jpg?alt=media&#x26;token=52e2c083-b606-4c79-9da9-644a84f96ca2" alt=""><figcaption></figcaption></figure>

Front Isometric View

***

### Interior Isometric Views

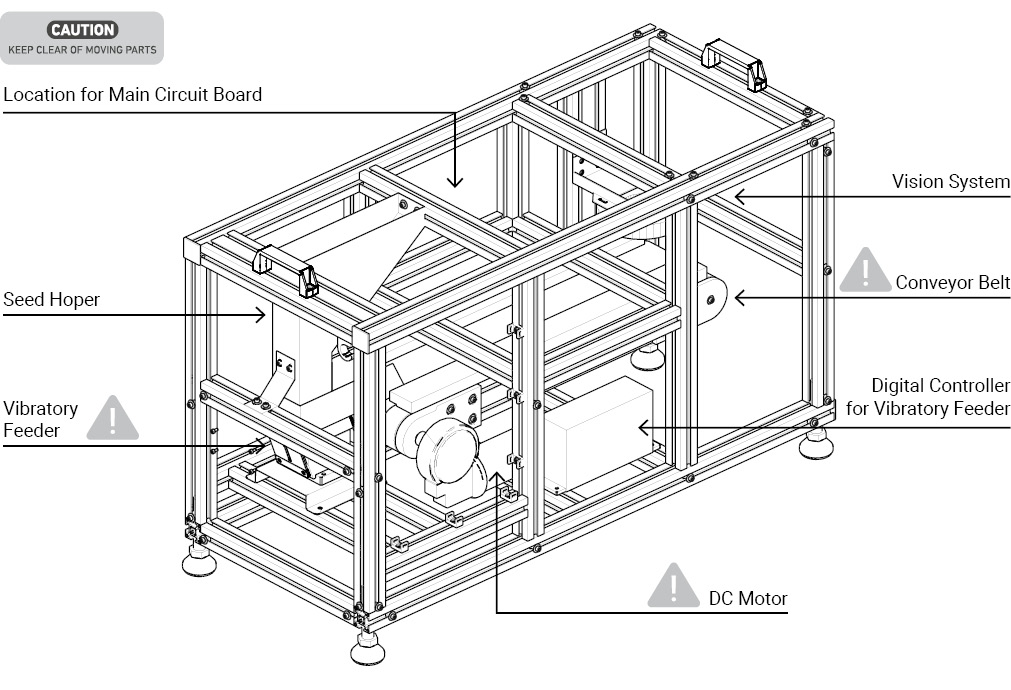

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2F3tIJVg1hQP3huKllxjzR%2FRearIsometricViewInterior.jpg?alt=media&#x26;token=3b14b23b-dd4c-4356-b854-1b3296bafdd6" alt=""><figcaption></figcaption></figure>

Rear Isometric View

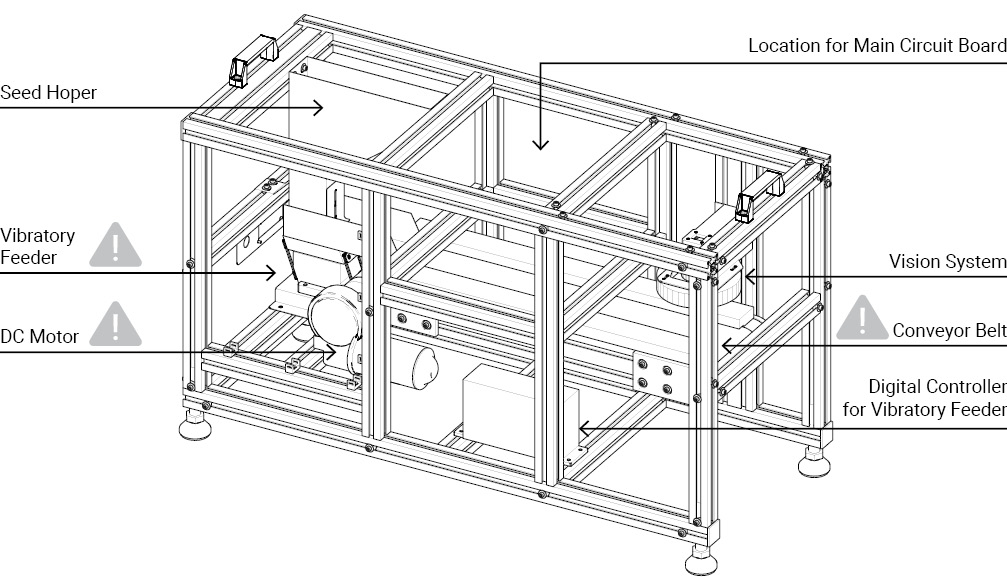

<figure><img src="https://720301389-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6oIQ8wop1q6xySQrwexP%2Fuploads%2Fsz8Xgg4xKEMeva0lMoYD%2FFrontIsometricViewInterior.jpg?alt=media&#x26;token=a308868e-1336-45ca-949d-57a9e714b560" alt=""><figcaption></figcaption></figure>

Front Isometric View
